Torque Guided Driver

Torque resisting force of AbosoAnchor^® microimplants.

• The TG-Driver is designed to prevent breakage(fracture) of microimplant during driving by adjusting torque gauge which is built in hand driver.
• The amount of registing torque force ranged from 0.5 Kgf.Cm to 2.0 Kgf.Cm can be indicated by the edge of Rotating Handle on the numeric Scale.
• Initially the edge of Rotating Handle indicates about 0.5 Scale, and it's resisting torque force is about 0.5 Kgf.Cm
• The edge of Rotating Handle can be moved back & forth on the Scale by rotating the Locking Nut.
• When we want to adjust torque resisting force, first release the Supporting Handle by turning into counter- clockwise direction.
• After releasing the Locking Nut, we can move Rotating Handle back & forth by turning the Locking Nut.
• After determining the proper scale depending on the items, we have to lock the Locking Nut tightly again. To lock the Locking Nut, first rotate Supporting Handle in clockwise direction.
• When we exceed determined torque force, we can hear clicking sound of the clutches due to the slippage of them.

Hand Contraangle Driver

• Hand Contraangle Driver(HCD) is designed to place Absoanchor microimplant using hands without low speed motor.
• Any kind of common (1:1) low speed contraangle handpiece(CH) can be attached to the HCD. Various size of Engine Driver(ED) should be inserted into the contraangle handpiece.
• HCD with contraangle handpiece is easy to access on the limited sites which are difficult to access with straight long and short hand driver.
• For examples, retromolar area, tuberosity, palate, maxillary and mandibular buccal posterior area are easy to access for removal as well as driving.
• If we use Hand Contraangle Driver, the operator can feel the resistance easily during driving & removal of microimplant compare to electric motor driving.

Short Hand Drivers

Engine Drivers

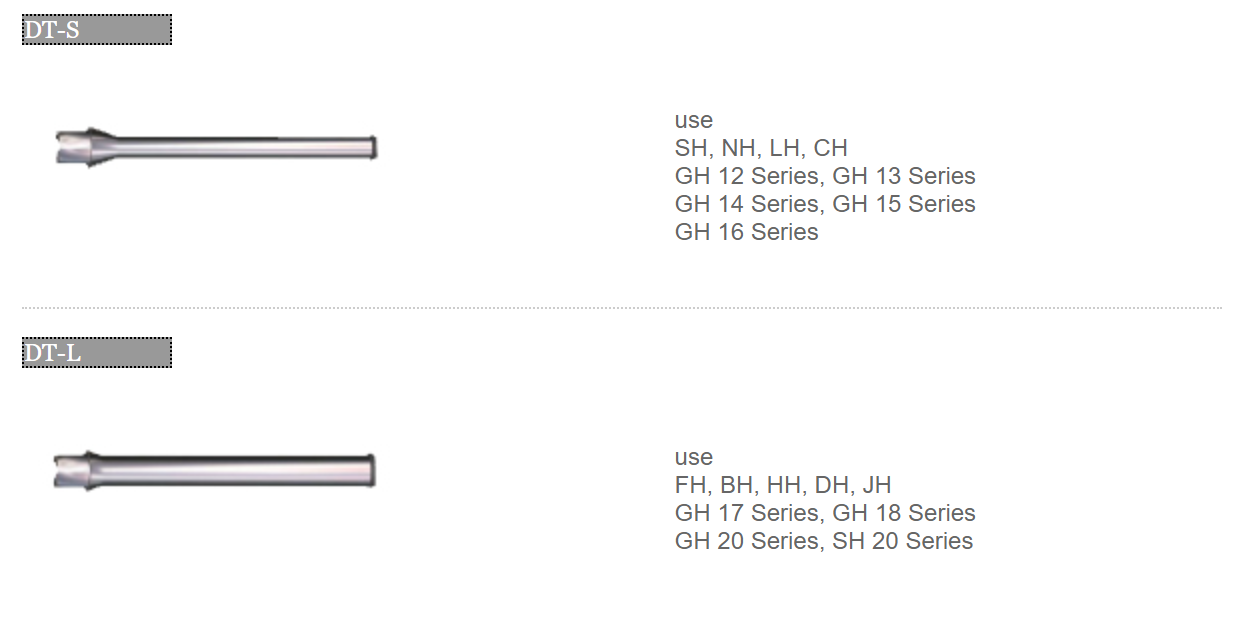

Driver Tips

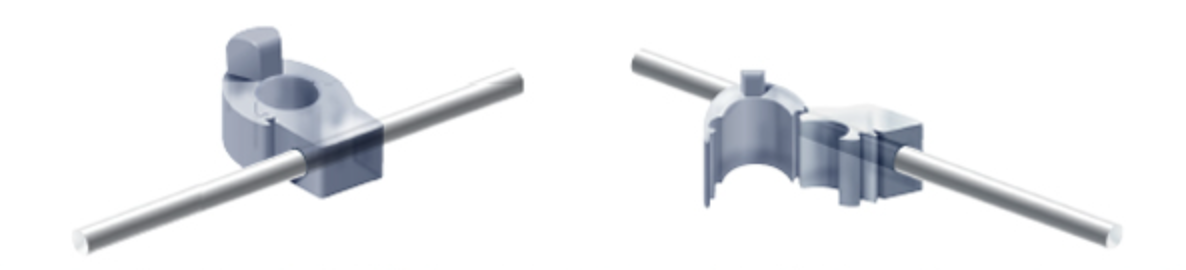

Micro dual ball grip system
